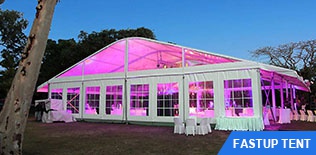

Arcum Tent

Arcum Tent

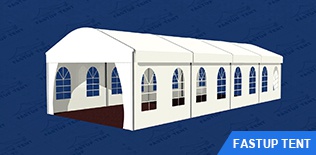

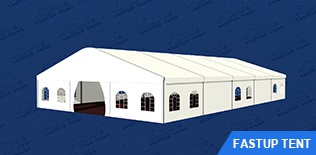

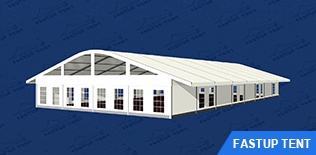

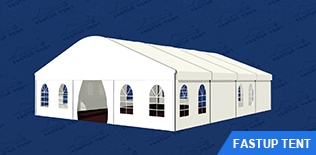

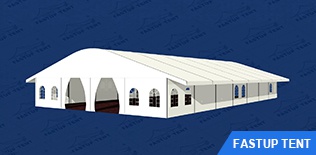

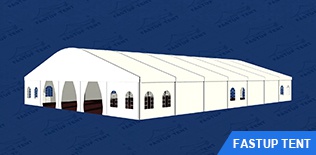

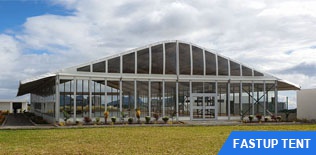

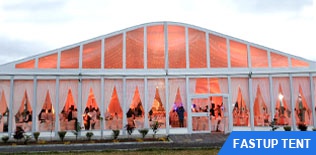

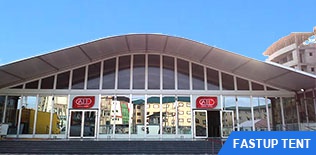

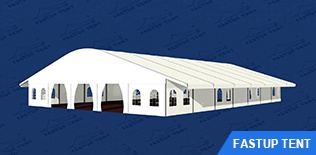

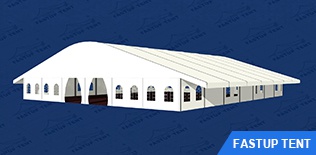

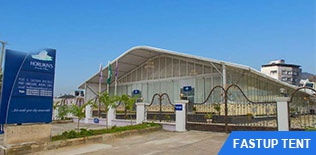

Arcum Tent has a overhang and arched roof, this special design make Arcum tent very popular these years.  Besides common PVC sidewall, you can also choose glass wall, ABS hard wall, sandwich wall Ect.

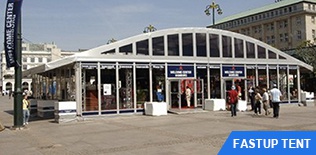

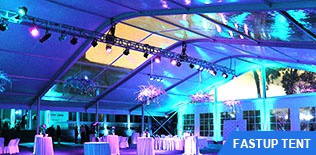

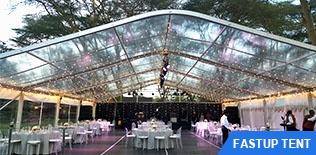

The accessories available for Arcum tent: glass door, VIP cassette flooring, door ramp, anchor, lining and curtain for different demand. Fastup Arcum tent is very easy and convenient to assemble, dismantle, and move to different place. It is widely used for move events renting or permanent hall for variety of use, such as wedding tent, church tent, and exhibition tent, Sports Ect.
Accessories available for Arcum tent: lining & curtain, Cassette wooden flooring system, ground anchor.

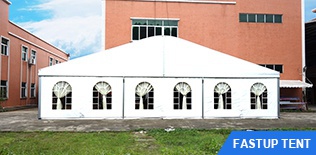

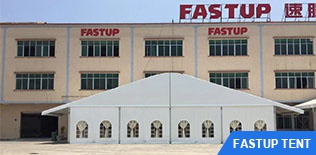

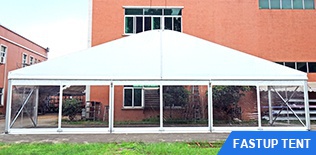

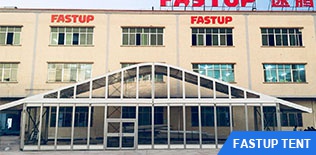

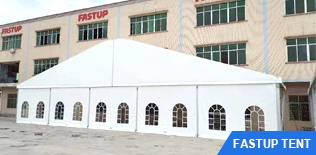

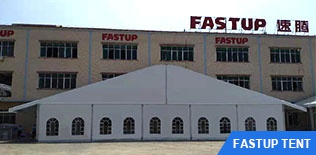

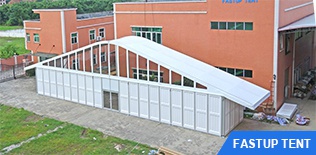

Test Installation in Our Factory

Dimension Available

Fastup Tent
Item No.
Width
(m)
Bay distance
(m)
Side height
(m)
Main frame profile
(m)
Wind load
(km/h)
Snow load
(KN/m2)
Popular Szie
DOM5/2500 3m 3m 2.5m 100x48mm 80km/h 0.3 Kn/m2 5x18m
DOM5/2500 5m 3m 2.5m 100x48mm 80km/h 0.3 Kn/m2 5x18m
DOM10/2500 10m 5m 3m 122x68mm 100km/h 0.3 Kn/m2 10x20m
ARC15/3000 15m
(2.5+12+2.5)
5m 3m 122x68mm 100km/h 0.3 Kn/m2 (2.5+12+2.5) x 30m
ARC20/3000 18m
(1.5+15+1.5)
5m 3m 150x110mm 100km/h 0.3 Kn/m2 (1.5+15+1.5) x 30m
ARC25/4000 25m
(2.5+20+2.5)
5m 4m 204X110mm 100km/h 0.3 Kn/m2 (2.5+20+2.5) x 50m
ARC30/4000 30m
(2.5+25+2.5)
5m 4m 250x110mm 100km/h 0.3 Kn/m2 (2.5+25+2.5) x 60m
ARC35/4000 35m
(2.5+30+2.5)
5m 4m 250x110mm 100km/h 0.3 Kn/m2 (2.5+30+2.5) x 60m

Material and Quality


FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof

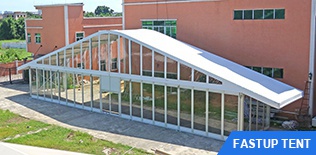

SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection

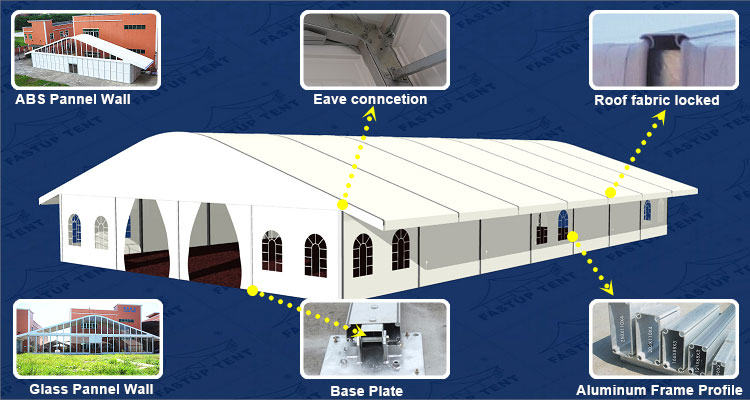

Structure Details

Optional Accessories
