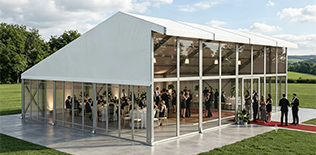

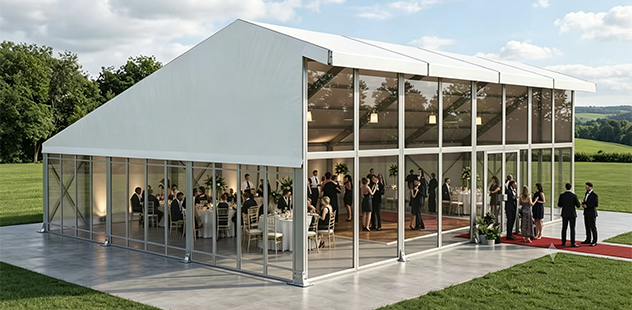

A monopitch tent structure features a single-sloping roofline where one side is significantly taller than the other. Monopitch, with groundbreaking alternative to traditional tents, featuring a unique roof shape that redefines outdoor venues.
|
Fastup Tent Item No. |
Width (m) |
Bay distance (m) |
Side height (m) |
Ridge height C(m) |
Ridge height A(m) |
Roof Pitch |
Main frame profile (m) |
Wind load (km/h) |
Snow load (KN/m2) |
Popular Szie |
| MONO10/4000 | 10m | 5m | 4m | 6.5m | 6.31m | 18° | 204x110mm / 200x120mm | 100km/h | 0.3 Kn/m2 | 20m/30m/50m |
| MONO15/4000 | 15m | 5m | 4m | 8.18m | 8.03m | 18° | 250x111mm / 250x120mm | 100km/h | 0.3 Kn/m2 | 20m/30m/50m |
| MONO20/4000 | 20m | 5m | 4m | 9.73m | 18° | 300x120mm | 100km/h | 0.3 Kn/m2 | 30m/40m/50m | |
| FRAME | Hard pressed anodized aluminum alloy 6061/T6 |
|---|---|
| ROOF COVER | 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof |
| SIDE WALL | 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall |
| CONNECTION | Hot Dipped Galvanized Steel Connector, Aluminum roof connection |
