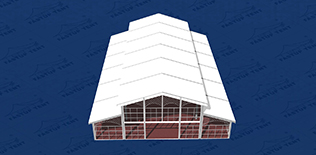

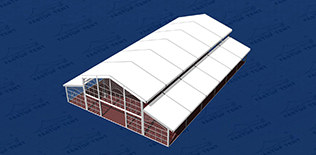

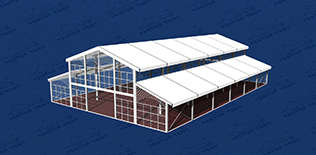

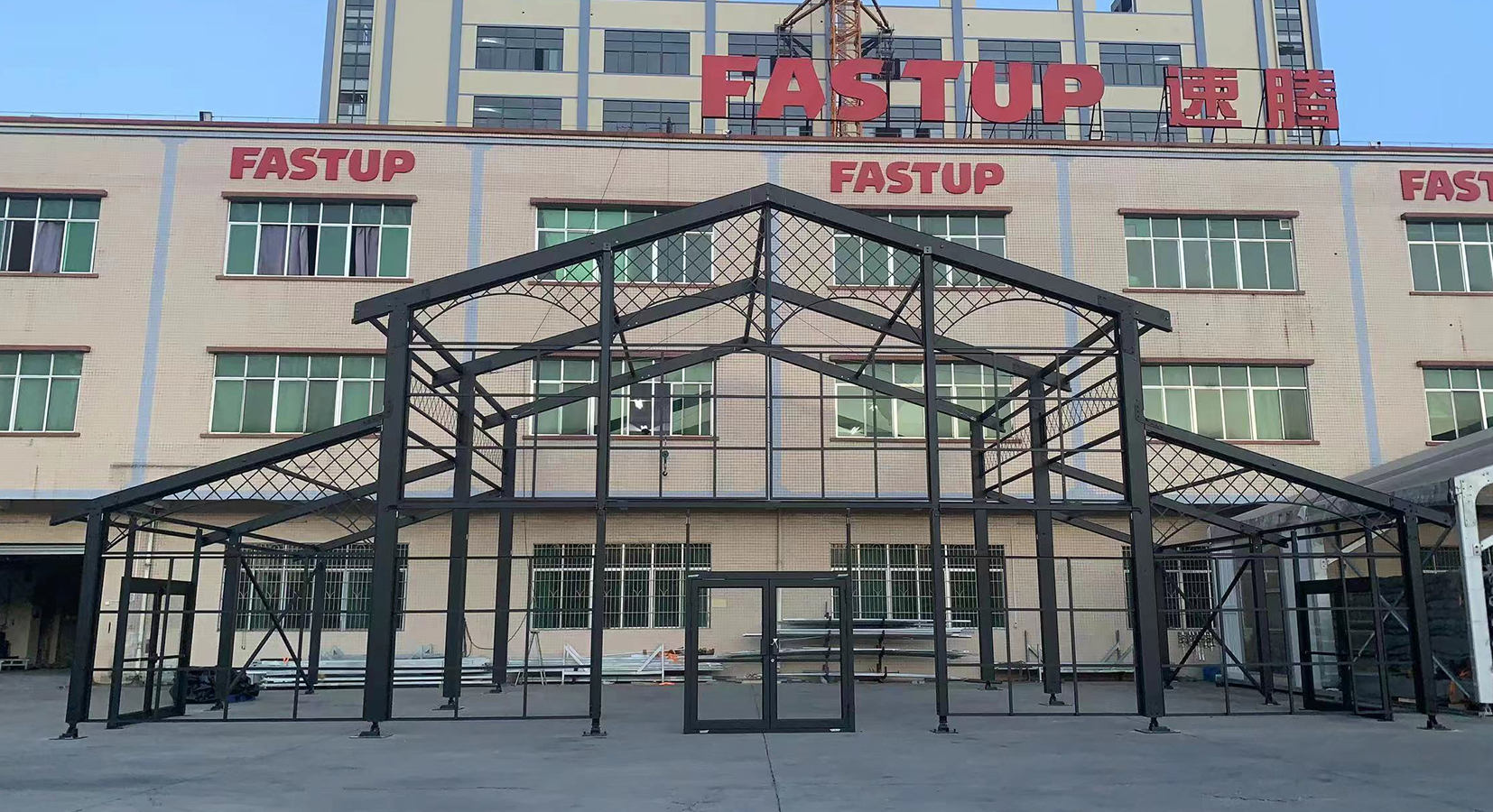

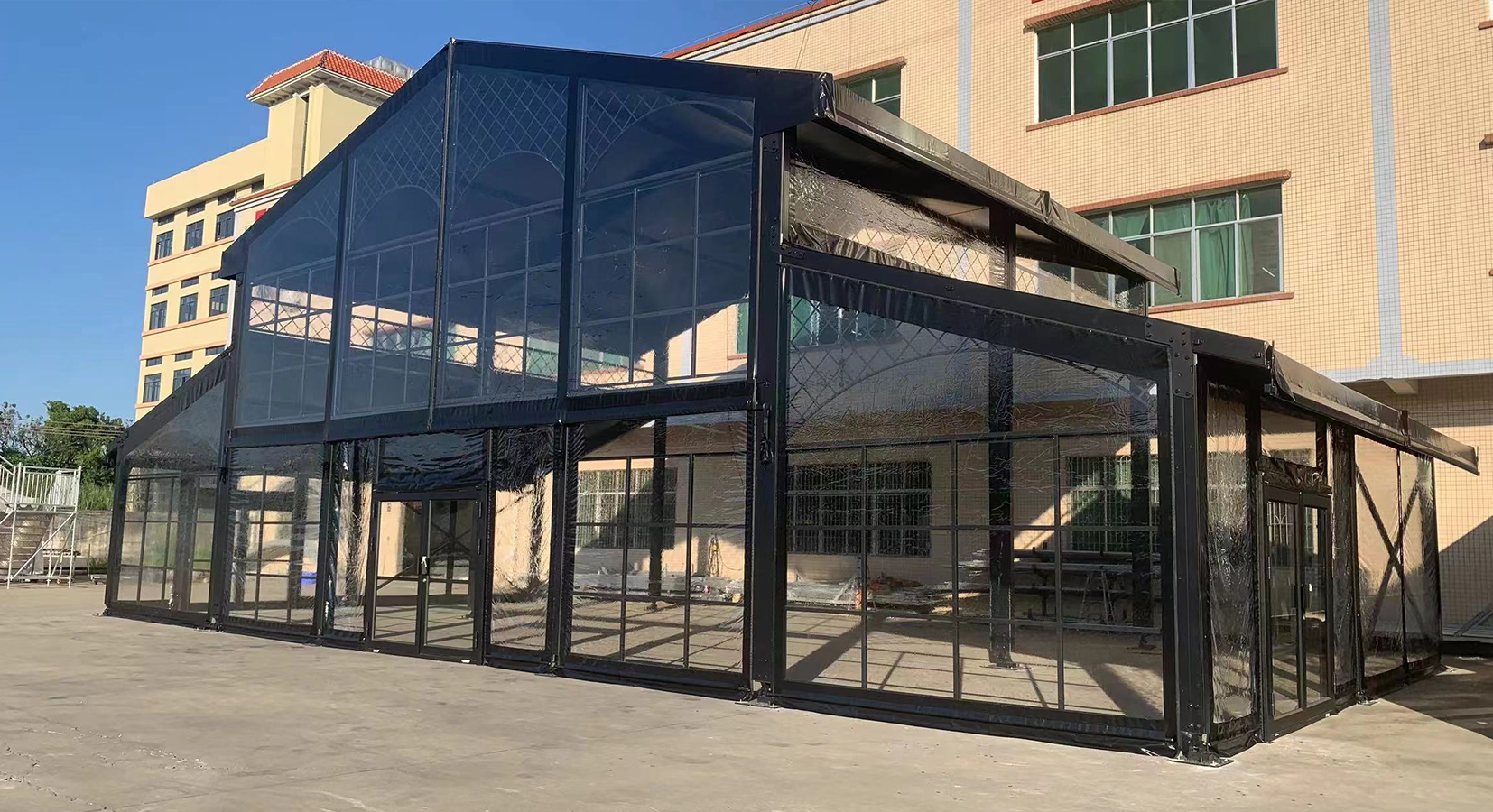

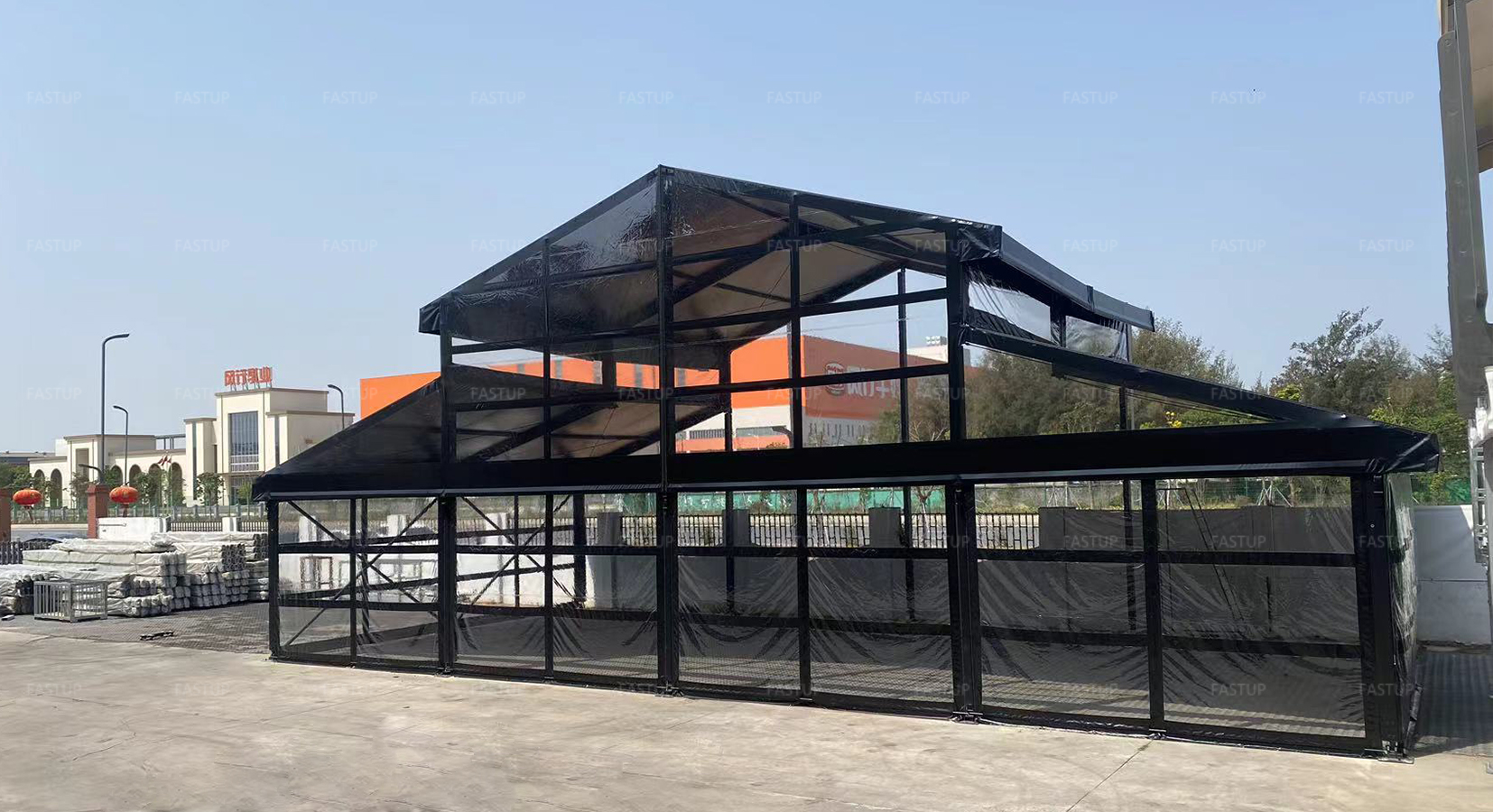

Tower Tent

Tower Tent

Our Party tent are widely used for wedding, party, events, exhibitions,storage,sport events ect. Full line accessories are available, such as glass wall system, glass door system, flooring system, and so on. It is widely used for different occassions, inlcuding wedding, party, banquet,and event sports event.

Dimension Available

Fastup Tent
Item No.
Width
(m)
Bay Distance
 (m)
Side height (m) Roof Pitch
Aluminum Profile Wind Load (km/h) Snow Load (Kn/m2) Popular Size
S6/2500 6m 3m 2.5m 22° 100x48mm 80km/h 0.3 Kn/m2 6x12m /6x15m
S9/2500 9m 3m 2.5m 22° 100x48mm 80km/h 0.3 Kn/m2 9x15m / 9x18m
S10/2500 10m 5m 3m 18° 122x68mm 100km/h 0.3 Kn/m2 10x20m / 10x30m
M12/2500 12m 5m 3m 18° 122x68mm 100km/h 0.3 Kn/m2 12x20m / 12x30m
M15/3000 15m 5m 3m 18° 150x110mm /150x120mm 100km/h 0.3 Kn/m2 15x20m / 15x30m
L20/4000 20m 5m 4m /3.4m 18° 204x110mm / 200x120mm 100km/h 0.3 Kn/m2 20x30m / 20x50m
L25/4000 25m 5m 4m 18° 204x110mm / 200x120mm 100km/h 0.3 Kn/m2 25x50m / 25x60m
L30/4000 30m 5m 4m 18° 250x110mm / 250x120mm 100km/h 0.3 Kn/m2 30x50m / 30x100m
L40/4000 40m 5m 4m / 5.4m 18° 300x120mm 100km/h 0.3 Kn/m2 40x50m / 40x100m
L50/4000 50m 5m 4m / 5.4m 18° 300x120mm 100km/h 0.3 Kn/m2 50x50m / 50x100m
L60/4000 60m 5m 4m / 5.4m 18° 420x120mm 100km/h 0.3 Kn/m2 60x60m / 60x100m

Material and Quality


FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection

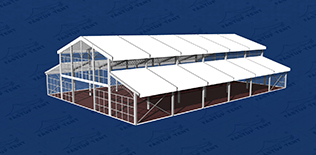

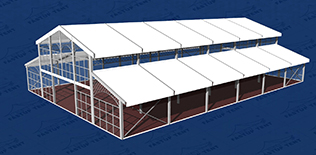

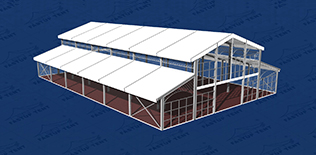

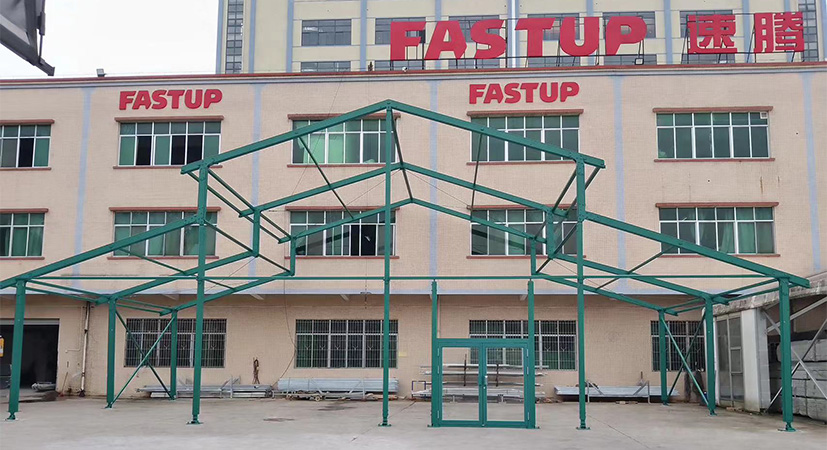

Structure Details


Optional Accessories
