Pagoda Tent

Pagoda Tent

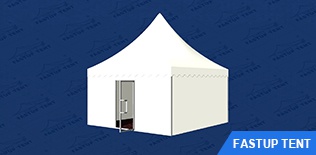

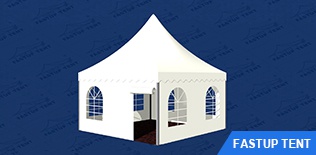

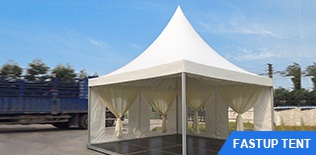

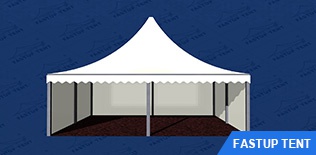

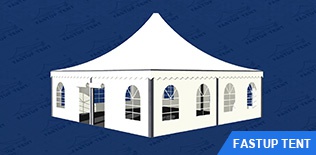

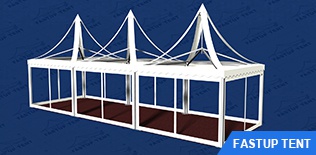

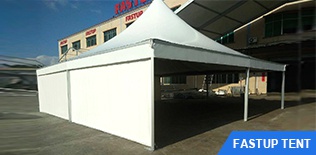

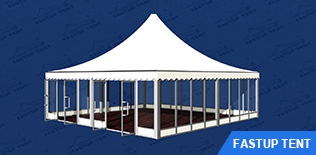

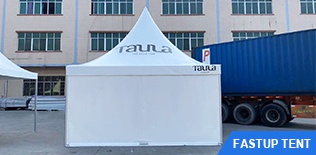

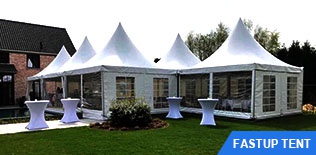

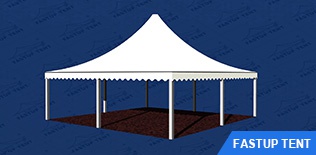

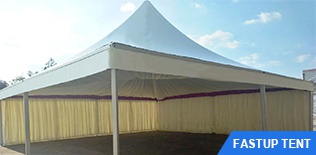

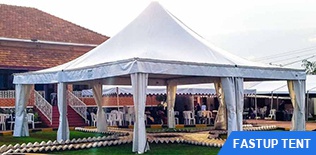

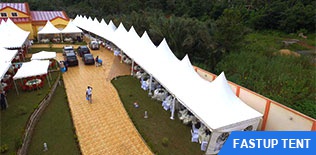

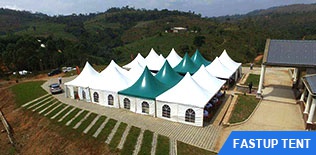

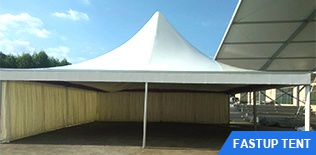

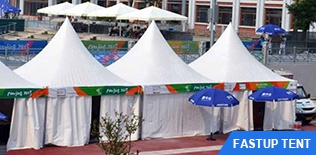

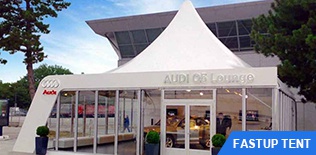

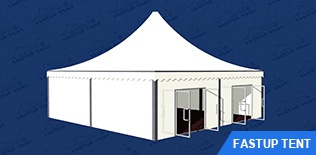

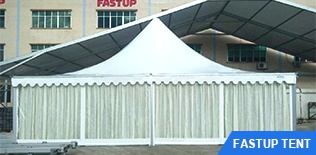

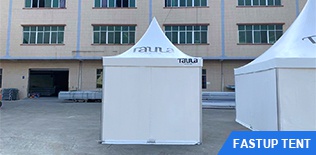

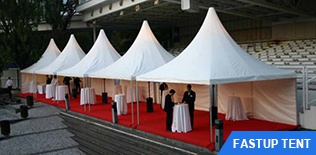

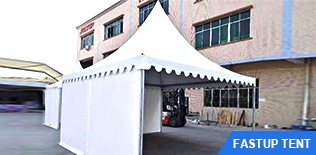

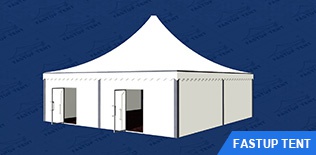

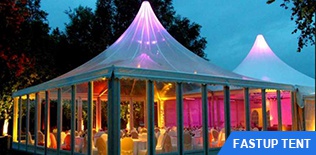

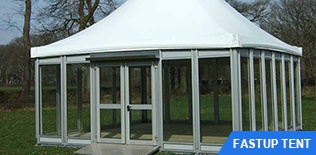

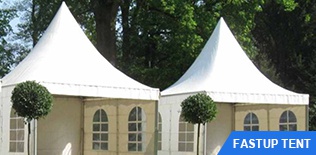

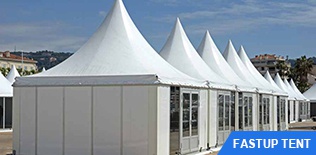

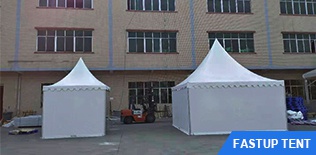

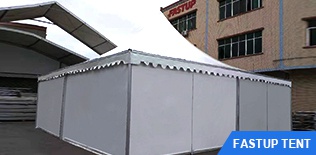

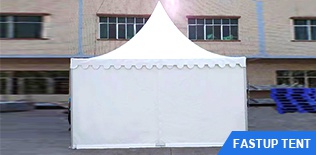

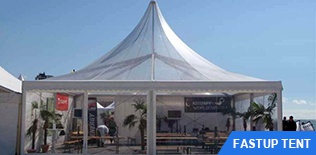

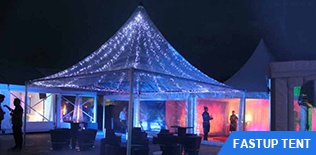

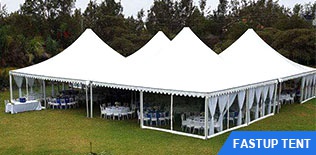

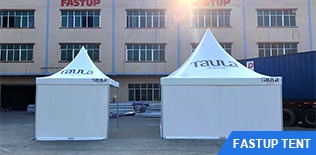

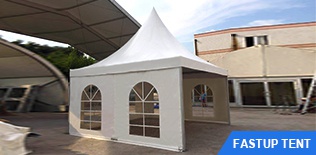

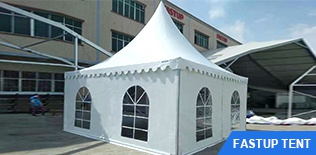

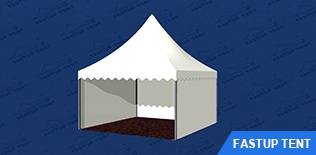

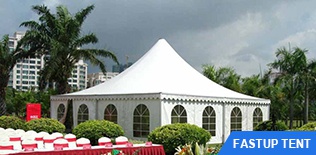

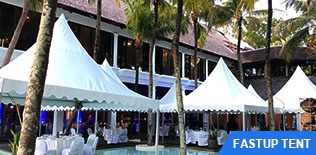

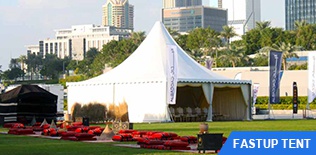

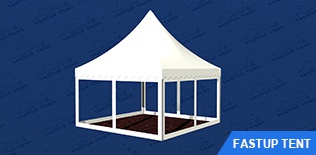

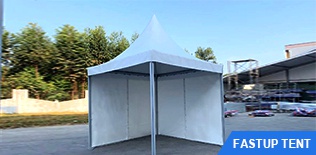

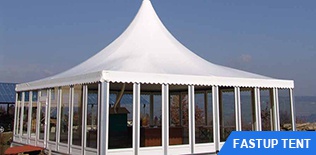

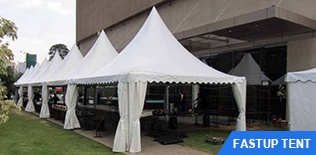

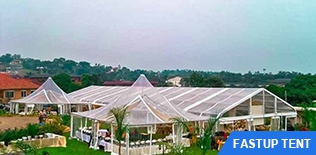

 Pagoda tent is has a high peak dome on top. The size can be 3x3m, 4x4m, 5x5m, 6x6m, 8x8m, 10x10m, which are 10x10ft, 13x13ft, 17x17ft, 20x20ft, 27x27ft, 33x33ft. Pagoda’s unique appearance make it can used in many occasion: home garden, exhibition, trade show, event, small party. Whatever install one pagoda tent alone or assemble all together with rain gutter, it has different charming. Besides square pagoda tent, we also have hexagon tent.
It is easy to set up and take down. You can check the installation video page on our website.

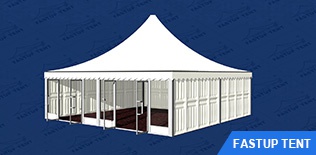

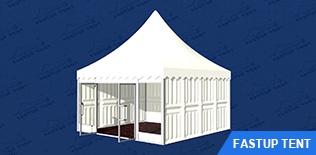

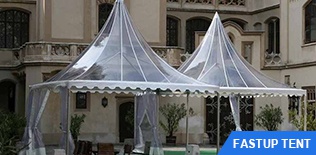

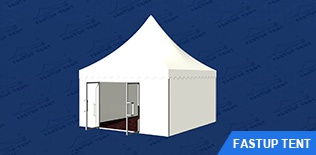

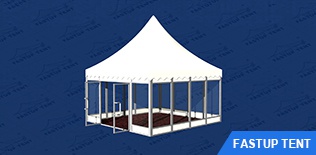

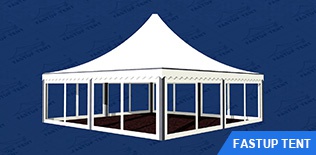

Accessories available for pagoda tent: lining & curtain, glass wall, glass door, ABS panel wall, Cassette wooden flooring system, ground anchor.


Dimension Available

Fastup Tent
Item No.
Dimension Side height (m) Peak height (m) Main frame profile
(mm)
Wind Load (km/h) Snow Load (Kn/m2)
SPD3 3m x 3m 2.5m 4.2m 65X65mm 80km/h 0.3KN/sqm
SPD4 4m x 4m 2.5m 4.8m 65X65mm 80km/h 0.3KN/sqm
MPD5 5m x 5m 2.5m 5.2m 65X65mm 80km/h 0.3KN/sqm
MPD6 6m x 6m 2.5m 5.8m 65X65mm 80km/h 0.3KN/sqm
LPD8 8m x 8m  2.5m / 3m 5.4m 122X68mm 100km/h 0.3KN/sqm
LPD10 10m x 10m 2.5m / 3m 6.4m 122X68mm 100km/h 0.3KN/sqm

Material and Quality


FRAME Hard pressed anodized aluminum alloy 6061/T6
ROOF COVER 850g/sqm block-out Double PVC coated polyester, Fire retardant, Water Proof
SIDE WALL 650g/sqm or 850g/sqm PVC; Glass Pannel sidewall, ABS sidewall, Sandwich Wall
CONNECTION Hot Dipped Galvanized Steel Connector, Aluminum roof connection

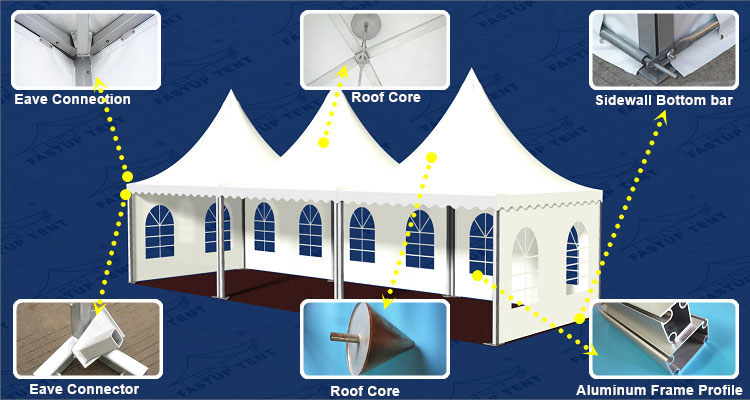

Structure Details

Optional Accessories
